JFOPT QSFP28 100G PSM4 Optical Module | 2km MPO High-Density Parallel Transceiver

Product model	JFTSM-QSFP28-100-PS4-2-MPO8/12	Manufacturer brand	JFOPT
Package type	QSFP28	Optical connector	MPO 8C/12C
Max data rate	100Gbps	Channel data rate	26Gbps
Effective transmission distance	2km
Wavelength	1310nm	Operating voltage	3.3V
Fiber type	SMF	Core size	9/125
Transmitter type	DFB	Receiver type	PIN
TX power	-9.4~2.0dBm	Receiver sensitivity	-11.35dBm
Digital optical monitoring(DDM)	YES	Receiver overload	2.5dBm
Power consumption	<3.5W	Protocols	100G Ethernet Proprietary high speed Interconnections Data center
Operating temperature(Commercial)	0℃~+70℃	Storage temperature(Commercial)	-40℃~+85℃

PRODUCTION LINE INTRODUCTION

JFOPT continues to invest in optical transceiver production, covering a full range of optical transceiver such as 1*9, SFP, 10G, 25G, 100G, 200G, 400G, 800G GPON/EPON/XG/XGSPON OLT transceiver. At the same time, our company provides TOSA, ROSA, BOSA semi-finished device solutions for the downstream peer. JFOPT's production line has a daily production capacity of 10,000 optical transceivers and 20,000 optical devices. In addition, JFOPT's optical transceiver have industry-leading high temperature resistance and anti-interference capability, and are widely used in computing centers, operators, traffic security, power facilities and other industries.

PRODUCT PRESENTATION

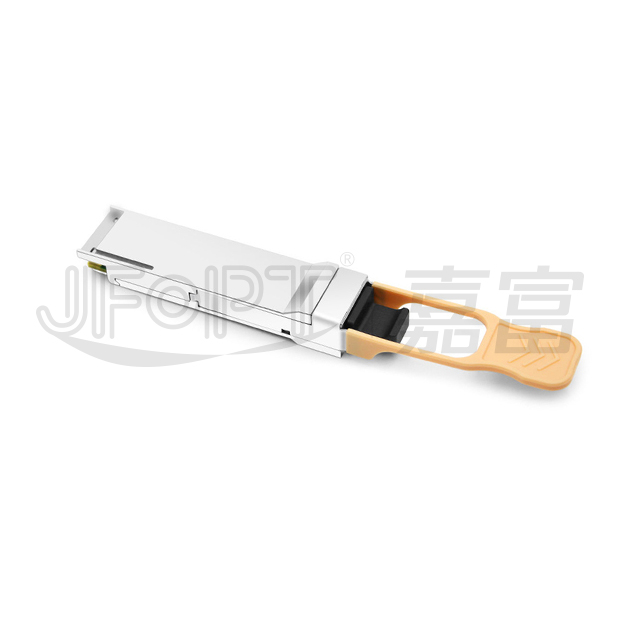

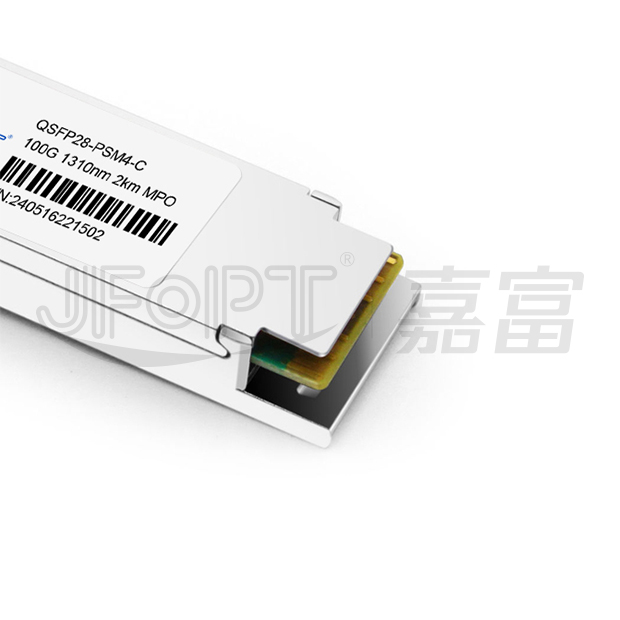

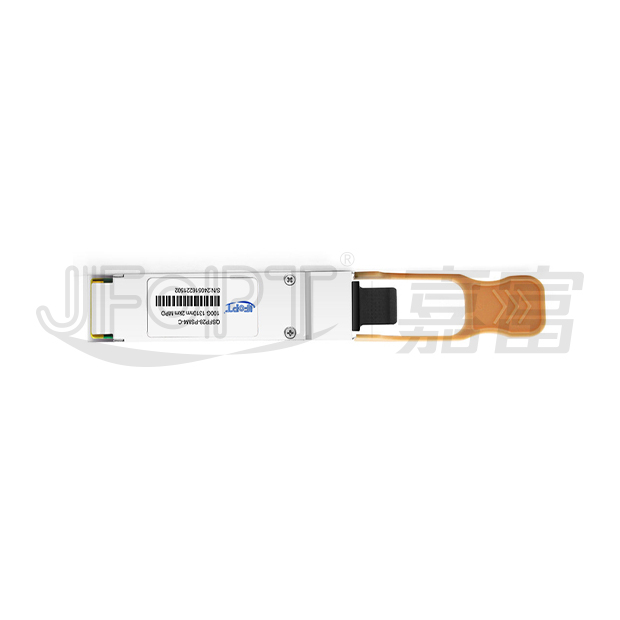

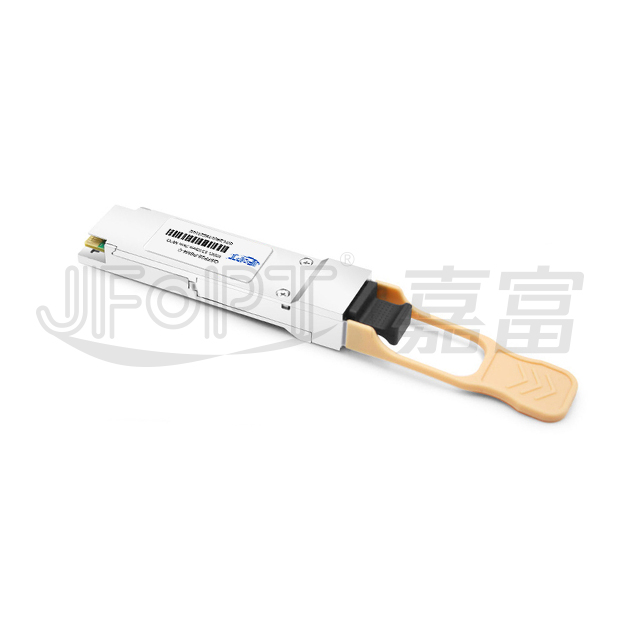

The JFOPT QSFP28 100G PSM4 2km MPO 8/12 is a high-performance, four-channel pluggable parallel fiber-optic transceiver designed for 100G Ethernet applications. This full-duplex module features four independent transmit and receive channels, each supporting 26Gbps, delivering a total aggregate data rate of 104Gbps over distances of up to 2km on single-mode fiber.Equipped with a 1310nm DFB laser array, the transceiver connects via an MPO/MTP optical fiber ribbon cable. As a parallel transceiver, the QSFP28 PSM4 enhances port density and reduces total system costs, making it an efficient solution for high-speed networking environments.

TRANSCEIVER SERIES PRODUCTS

PRODUCTION & TESTING EQUIPMENT

FEATURES

Four-channelfull-duplex transceiver modules					Transmission data rate up to 26Gbit/s per channel
Up to 2km transmission of single mode fiber					Low power consumption<3.5W
Operating case temperature:0 to 70℃					3.3V power supply voltage
Hot pluggable QSFP28 form factor					Built-in digital diagnostic function

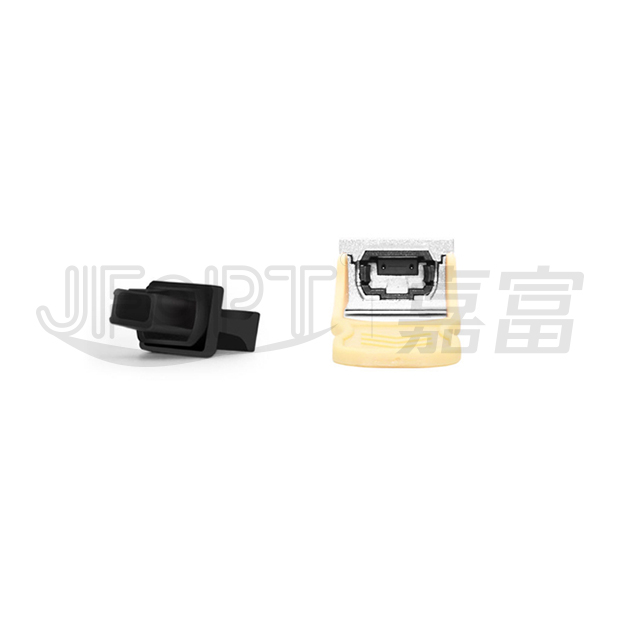

Single MPO connector receptacle

APPLICATION

100G ethernet				Proprietary high speed interconnections
Datacenter

STANDARD COMPLIANCE

ABSOLUTE MAXIMUM RATINGS

Parameter	Symbol	Min.	Max.	Unit
Power supply voltage	VCC	-0.3	+3.6	V
Storage temperature	TC	-40	+85	℃
Relative humidity	RH	5	85	%

RECOMMENDED OPERATING ENVIRONMENT

Parameter	Symbol	Min	Typical	Max	Unit
Power supply voltage	VCC	3.135	3.30	3.465	V
Operating case temperature	Tca	0	-	70	℃

ELECTRICAL CHARACTERISTICS

Parameter	Symbol	Min	Typical	Max	Unit	Ref
Transmitter
Input differential impedance	Rin	-	100	-	Ω	1
Differential input voltage amplitude	△Vin	300	-	1100	mVp-p	-
Input logic level high	VIH	2.0	-	VCC	V	-
Input logic level low	VIL	0	-	0.8	V	-
Receiver
Output differential impedance	Rout	-	100	-	Ω	1
Differential output swing,per lane	Vout	300	-	800	mVp-p	2
Output logic level high	VOH	VCC-0.5	-	VCC	V	-
Output logic level low	VOL	0	-	0.4	V	-
Notes: [1]AC coupled. [2]Into 100 ohm differential termination.

TRANSITTER SPECIFICATIONS-OPTICAL

Parameter	Symbol	Min	Typical	Max	Unit	-
Center wavelength	λC	1295	-	1325	nm	1
RMS spectral width	λrms	-	-	3.5	nm	1
Average launch power, each lane	PAVG	-9.4	-	2.0	dBm	-
Optical modulation amplitude(OMA)	POMA	-4	-	2.2	dBm	1
Difference in launch power between any two lanes	Ptx,diff	-	-	5.0	dB	-
Transmitter and dispersion penalty(TDP),each lane(max)	TDP	-	-	2.9	dBm	1
Rise/Fall time	Tr/Tf	-	-	30	ps	-
Extinction ratio	ER	3.5	-	-	dB	-
Relative intensity noise	Rin	-	-	-128	dB/Hz	-
Optical return loss tolerance	TOL	-	-	20	dB	-
Transmitter reflectance	RT	-	-	-12	dB	-
Transmitter eye mask margin	EMM	10	-	-	%	2
Transmitter eye mask definition{X1,X2, X3,Y1,Y2,Y3}	-	[0.31,0.4,0.45,0.34,0.38,0.4}			-	-
Average launch power OFF transmitter,each lane	Poff			-30	dBm	-

RECEIVER SPECIFICATIONS-OPTICAL

Parameter	Symbol	Min.	Typical	Max.	Unit	-
Center wavelength	λC	1295	-	1325	nm	-
Damage threshold	THd	+3	-	-	dBm	-
Overload,each lane	OVL	+2.5	-	-	dBm	-
Receiver sensitivity in OMA,each Lane	SEN	-	-	-11.35	dBm	-
Difference in receive power between any two lanes(OMA)	Prx,diff	-	-	5	dB	-
Signal loss assert threshold	LOSA	-30	-	-	dBm	-
Signal loss de-assert threshold	LOSD	-	-	-12	dBm	-
LOS hysteresis	LOSH	0.5	-	-	dB	-
Optical return Loss	ORL	-	-	-12	dBm	-
Notes: [1]Transmitter wavelength,RMS spectral width and power need to meet the OMAm inus TDP specs to guarantee link performance. [2]The eyediagram is tested with 1000 waveform.

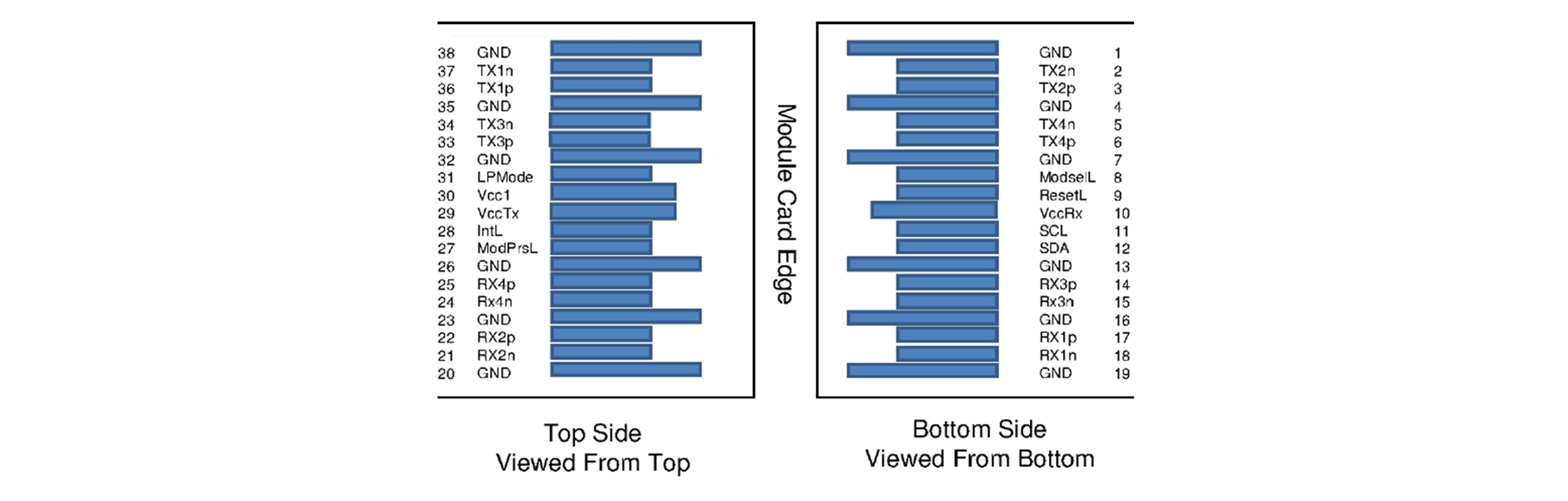

PIN DESCRIPTION

PIN DEFINITION

Pin	Symbol	Name/Description
1	GND	Ground
2	Tx2n	Transmitter inverted data input
3	Tx2p	Transmitter non-inverted data input
4	GND	Ground
5	Tx4n	Transmitter inverted data input
6	Tx4p	Transmitter non-inverted data input
7	GND	Ground
8	ModSelL	Module select
9	ResetL	Module reset
10	VCCRx	+3.3V power supply receiver
11	SCL	2-wire serial interface clock
12	SDA	2-wire serial interface data
13	GND	Ground
14	Rx3p	Receiver non-inverted data output
15	Rx3n	Receiver inverted data output
16	GND	Ground
17	Rxlp	Receiver non-inverted data output
18	Rx1n	Receiver inverted data output
19	GND	Ground
20	GND	Ground
21	Rx2n	Receiver inverted data output
22	Rx2p	Receiver non-inverted data output
23	GND	Ground
24	Rx4n	Receiver inverted data output
25	Rx4p	Receiver non-inverted data output
26	GND	Ground
27	ModPrsL	Module present
28	IntL	Interrupt
29	VCC Tx	+3.3V power supply transmitter
30	VCC1	+3.3V power Supply
31	LPMode	Low power mode
32	GND	Ground
33	Tx3p	Transmitter non-inverted data input
34	Tx3n	Transmitter inverted data input
35	GND	Ground
36	Txlp	Transmitter non-inverted dataInput
37	Tx1n	Transmitter inverted data input
38	GND	Ground
